Façade Mastery with Revit: From Concept to Detail

Master façade design with Autodesk Revit & Dynamo in a 20-Hour intensive workshop

🗓️ Duration: 20 Hours | ⏱️ 2 Hours Daily
💻 Location: Online | 💰 Price: ₹5999



Pay Now

What’s the Workshop About?

Master the art and science of façade design using Autodesk Revit and Dynamo. Whether you're an architect, designer, or BIM enthusiast, this 20-Hour intensive online workshop is crafted to take you from conceptual massing to advanced parametric façades—with real-world projects and hands-on training.

Day 1: Foundations of Façade Design + Revit Tools

  • Importance of façade design (aesthetic, environmental & structural factors)
  • Revit UI walkthrough – façade-focused tools
  • Levels, grids, and reference planes
  • Intro to basic modelling: walls, floors
  • Curtain Wall Basics: system types, grid setup
    📂 Includes presentation slides and practice files

Day 2: Conceptual Massing & Façade Forms

  • In-place vs. conceptual massing
  • Creating and editing mass families
  • Surface division + placing pattern-based panels
  • Visualization: sun path, materials, shadows
  • Project Practice: Hungarian Autoklub HQ façade concept modelling

Day 3: Custom Curtain Walls – From Basic to Advanced

  • Advanced curtain wall grids, mullions & panels
  • Creating custom panels and mullion profiles
  • Nested families: operable panels, louvers, fins
  • Add smart parameters (height, width, material)
  • Apply it: Begin modelling custom façade for Hungarian Autoklub HQ

Day 4: Parametric Façade Design with Dynamo

  • Getting started with Dynamo
  • Creating parametric forms & dynamic panels
  • Extract geometry from Revit
  • Generate surface patterns like Voronoi, random grids 💡 Boost your computational design skills!

Day 5: Advanced Façade Techniques

  • Dive into Adaptive Components
  • Introduction to Kinetic Façades
  • Recreate famous kinetic façades:
    • KAFD Metro Station
    • Museo Soumaya
    • The Broad Museum
      🎥 Live modelling + walkthroughs

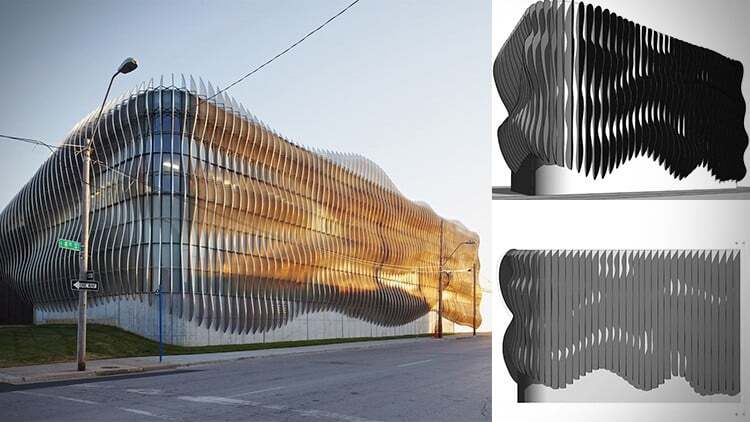

4973344_e31b

Day 1: Introduction to Façade

  • Types of façades in Revit (Curtain Wall, Wall-based, Adaptive)
  • Overview of System vs. Custom Curtain Walls
  • Terminology: Mullions, Grids, Panels, Spandrels
  • Understanding façade levels of detail (LOD 300–400)

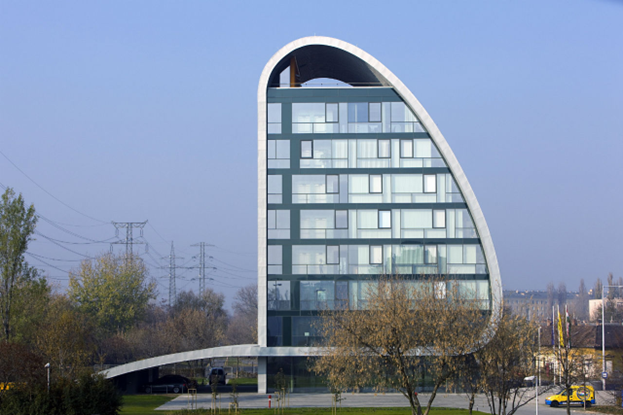

2-May-09-2025-01-17-00-8336-PM

Day 2: Curtain Wall Grids & Mullion Customization

  • Manual and automatic grid placement
  • Mullion type creation: rectangular, structural, split
  • Corner conditions & corner mullions
  • Managing visibility and join conditions

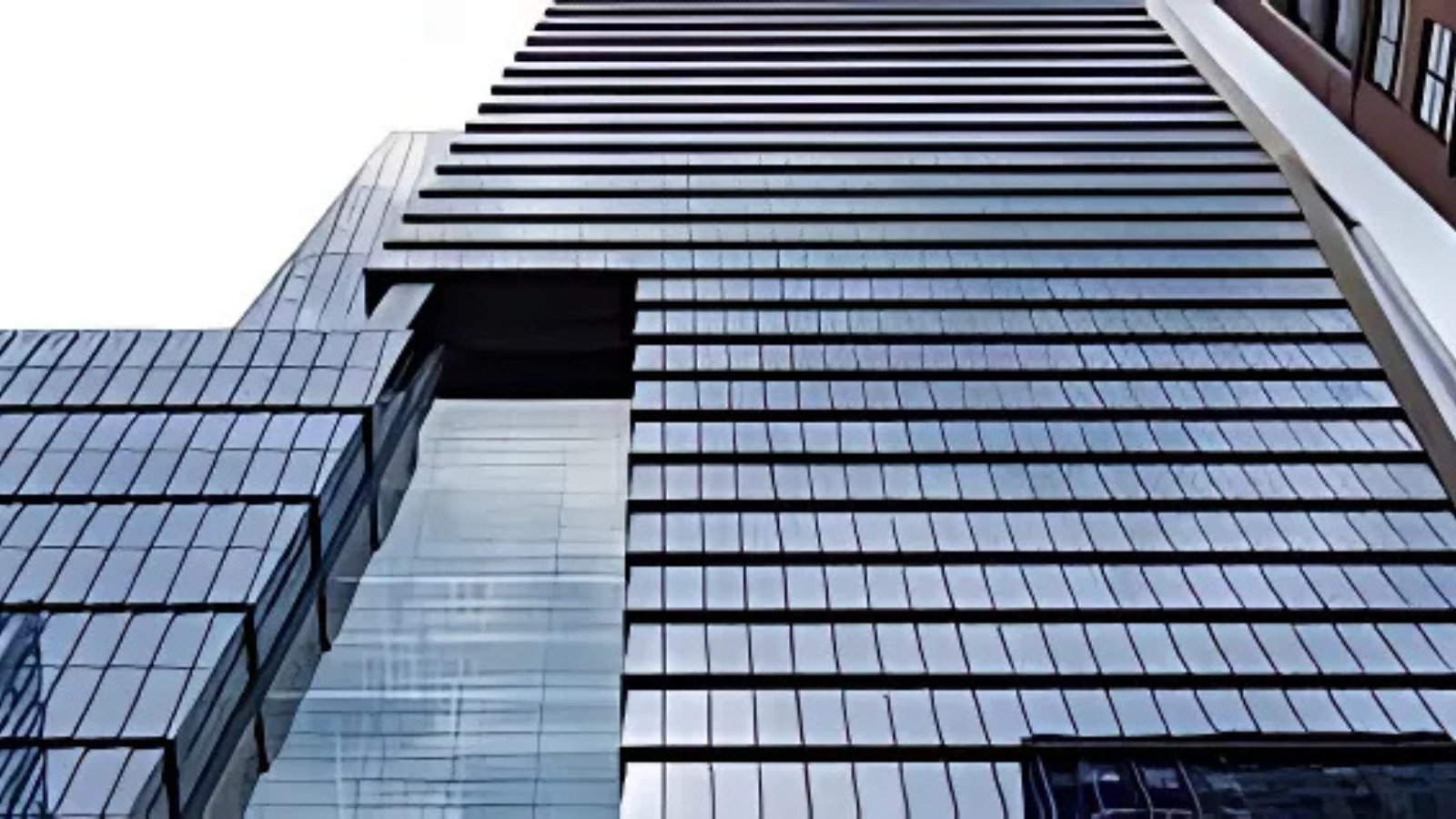

Untitled design (1)-2

Day 3: Custom Panels for Glazing and Opaque Systems

  • Panel templates: Curtain Wall Panel vs. Pattern-Based
  • Parametric panel design (glass, aluminium, GRC, louvered)
  • Embedding voids and glass frit patterns
  • Managing panel material types and visibility
4.1-1

Day 4: Storefront Systems and Stick Assemblies

  • Detailing for storefronts
  • Profile creation for extrusions
  • Thresholds, sills, door inserts
  • Storefront corner junction solutions

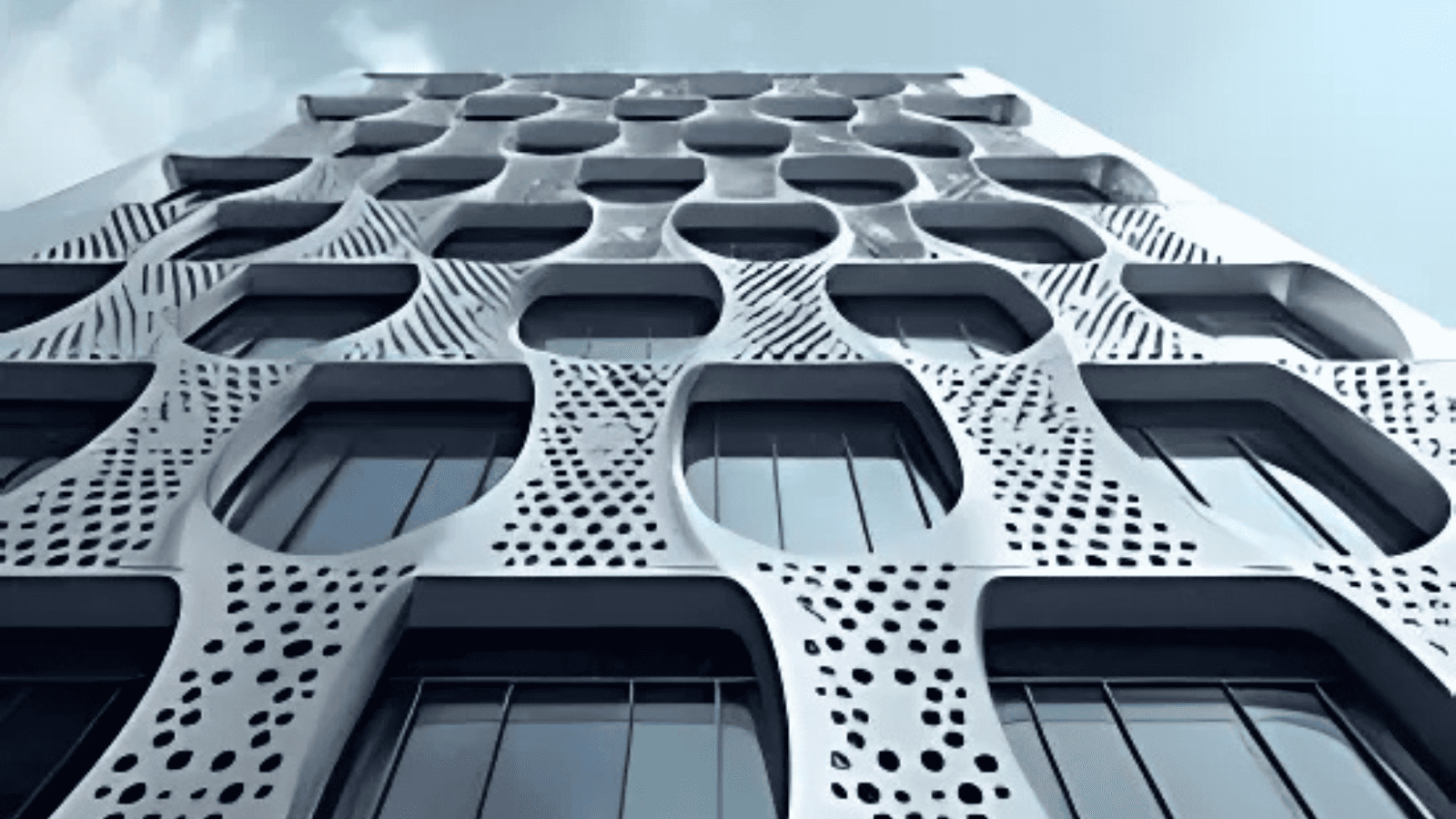

3-May-08-2025-01-12-54-8018-PM

Day 5: Double Skin & Hybrid Façades

  • Creating offset walls with air gap
  • Integration of operable vents
  • Using curtain systems as second skins
  • Performance zoning by orientation

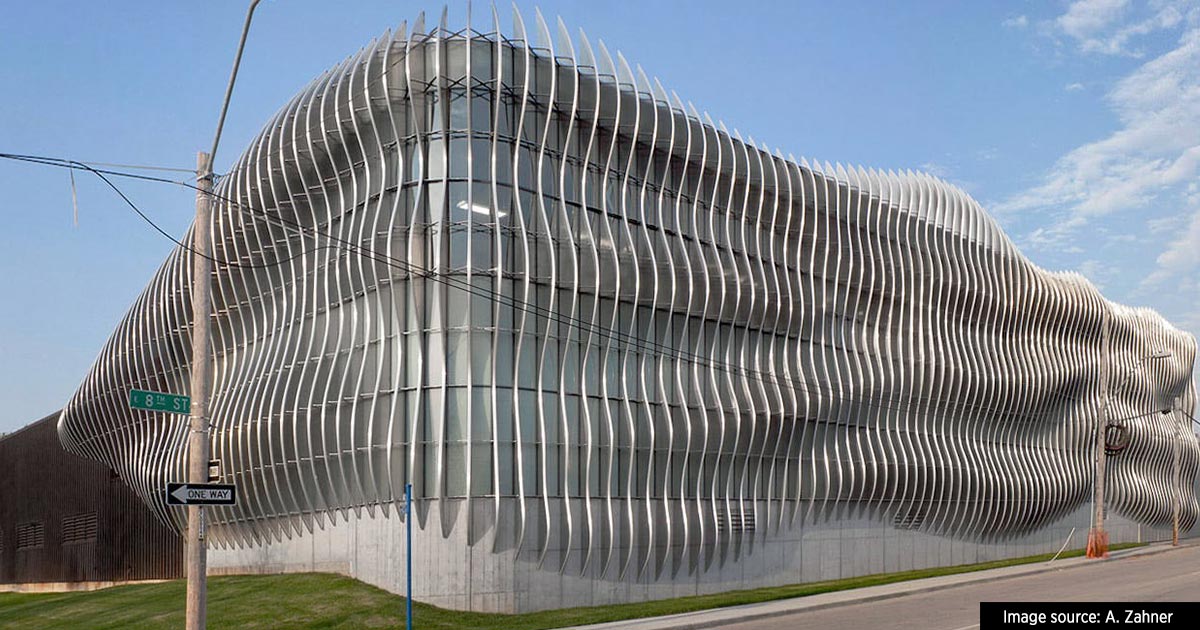

Innovative-Facade-Design

Day 6: Adaptive Façade Components

  • Creating adaptive points and grids
  • Hosting panels on adaptive points
  • Parametric families for louver angles, fins
  • Adaptive array with responsive behaviour

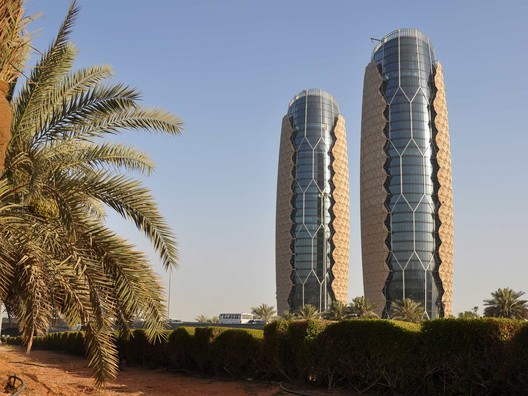

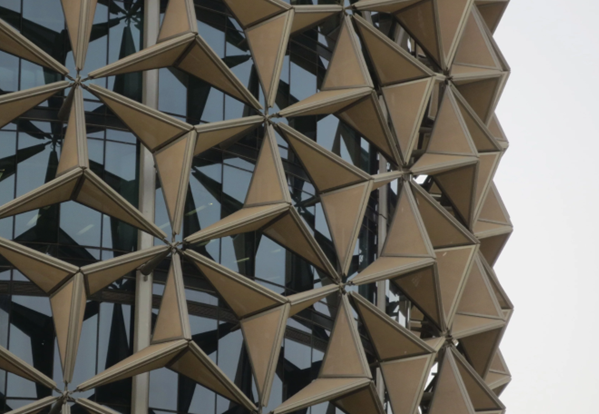

CST4r0EWwAA8l5b

Day 7: Case Study 1 – Al Bahar Tower (Responsive Façade)

  • Geometry intro: Islamic mash Rabiya-inspired panel
  • Using adaptive components and Dynamo for rotation control
  • Solar angle-based louver movement (parametric)
  • Panel tiling via divided surface + nested component
  • Output as responsive dynamic façade panel family

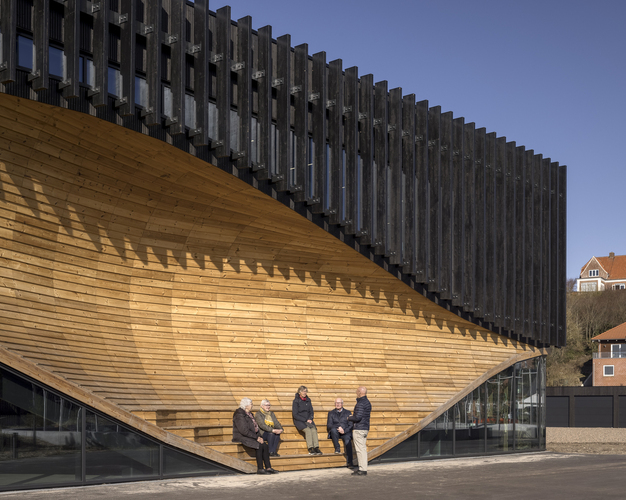

2Klimatorium-climate-center-3XN Architects-SLA-Architects-surfaces-reporter

Day 8: Case Study 2 – Wooden Wave Façade

  • Creating wave-like wooden fins using sine function
  • Placing profiles along adaptive reference lines
  • Nested adaptive components with sine function height variation
  • Curve-controlled placement and geometry generation

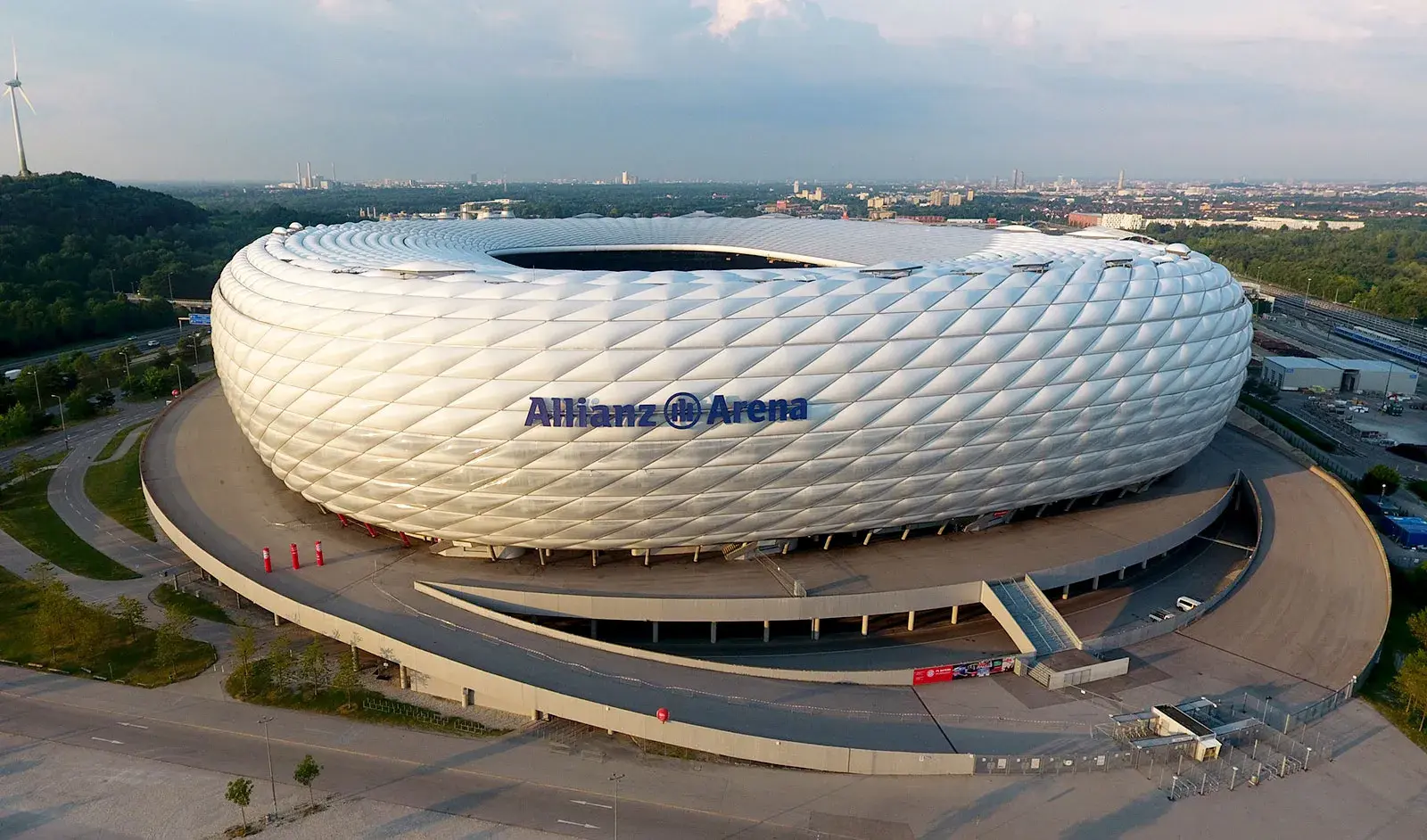

Allianz-Arena-Munich-Germany

Day 9: Case Study 3 – Allianz Arena (ETFE Panel System)

  • Bubble/fabric structure intro and logic
  • Curtain wall base system → panel customization
  • Panel family with revolved bubble form (inflate parameter)
  • Type-based variation using instance parameters
  • Dynamo script for patterned panel replacement

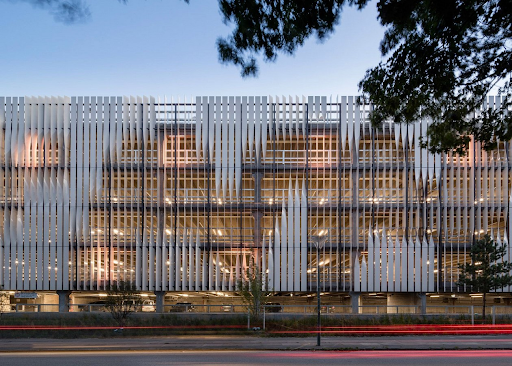

An example of a high-performance facade

Day 10: Final Project

  • Combine any case study concept into a unique design
  • Export curtain wall schedule + Q&A
